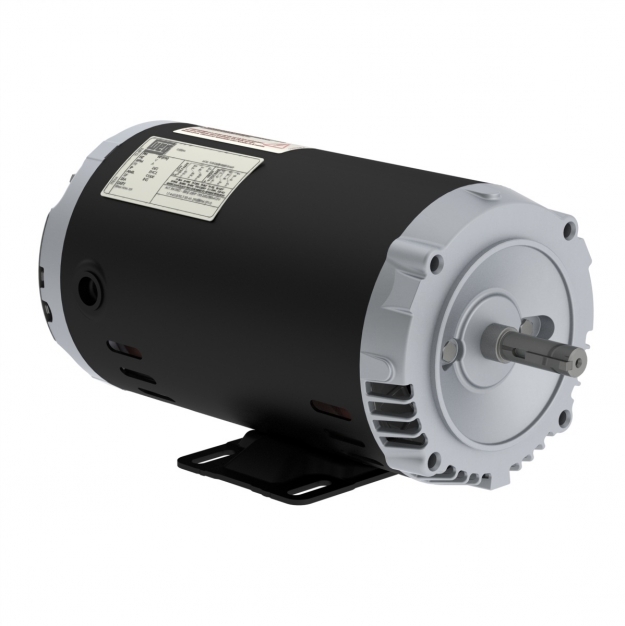

ELECTRIC MOTOR THREE PHASE 2 HP 02 56HC 575 C/W 3 leads WCA2 60Hz F-1/B34R(D) IP21 DIMENSIONS ACC. CONFIGURATION PREMIUM EFFICIENCYROLLED STEEL

Name: 2 HP 3600 575 ODP 56HC W01 DOE
Brand: WEG
SKU: OC002502W01DOE
Price: 768.00 CAD
Availability: InStock

Part Number: OC002502W01DOE

List Price: $768.00

Quantity:

Request Different Configuration

Inventory: Call for stock

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

Voltage	575V
Enclosure	IC01 - ODP

Frame	56H
Voltage	575 V
Number of Poles	2
Class	MOTOR ROLLED STEEL
Detail	IE2
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.1151 sq.ft.lb
Breakdown Torque	330 %
No Load Current	0.734 A
L. R. Amperes	17.2 A
Slip	2.50 %
Mounting	F-1/B34R(D)
Standard	NEMA
Impregnation Method	Dip and Bake Polyester
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Without Fan Cover
Fan Material	Without fan
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6204 ZZ
NDE Bearing Seal	Without Bearing Seal
