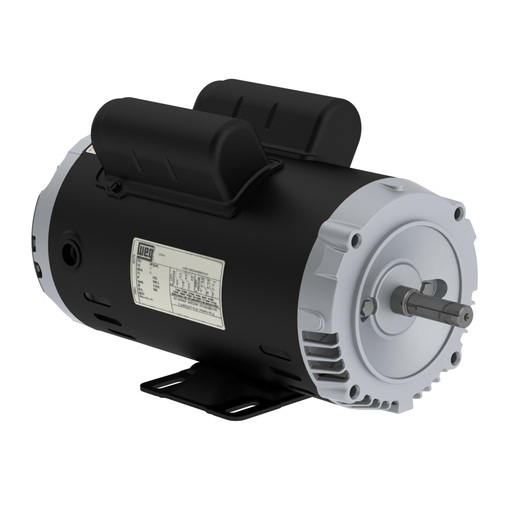

ELECTRIC MOTOR SINGLE PHASE 2 HP 02 56HC 115/208-230 WCA2 60Hz F-1/B34R(D) IP21 DIMENSIONS ACC. CONFIGURATION PREMIUM EFFICIENCY ROLLED STEEL SIN

Name: 2 HP 3600 1X2 ODP 56HC W01 DOE
Brand: WEG
SKU: OC002102W01DOE
Price: 1088.00 CAD
Availability: InStock

Part Number: OC002102W01DOE

List Price: $1,088.00

Quantity:

Request Different Configuration

Low Inventory

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

Output	2 HP (1.5 kW)
Class	MOTOR ROLLED STEEL
Detail	IE2
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.0747 sq.ft.lb
Breakdown Torque	280 %
No Load Current	5.00/2.16-2.50 A
L. R. Amperes	144/79.9-72.2 A
Slip	2.78 %
Mounting	F-1/B34R(D)
Standard	NEMA
Impregnation Method	Dip and Bake Polyester
Painting	Only primer
Fan Cover Material	Without Fan Cover
Fan Material	Without fan
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6204 ZZ
NDE Bearing Seal	Without Bearing Seal
