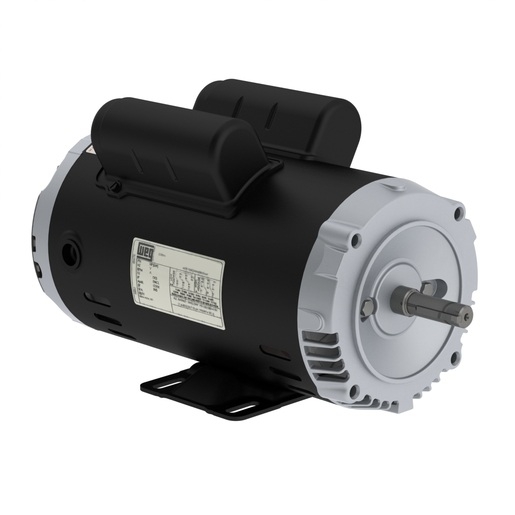

Rolled Steel 0.75 HP 2P 56C 1Ph 115/208-230 V 60 Hz IC01 - ODP - Foot-mounted

Name: .75HP 3600 1X2 ODP 56C DOE W01
Brand: WEG
SKU: OC.75102W01DOE
Price: 326.00 CAD
Availability: InStock

Part Number: OC.75102W01DOE

List Price: $326.00

Quantity:

Request Different Configuration

Inventory: In stock

HP	0.75 HP
RPM	3600 rpm

Voltage	115/208-230 V
Enclosure	IC01 - ODP

Frame	56C
Voltage	115/208-230 V
Number of Poles	2
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.0434 sq.ft.lb
Breakdown Torque	300 %
No Load Current	2.40/1.03-1.20 A
L. R. Amperes	58.5/32.3-29.2 A
Slip	2.50 %
Mounting	F-1
Standard	NEMA MG-1
Impregnation Method	Dip and Bake Polyester
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Without Fan Cover
Fan Material	Without fan
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6203 ZZ
NDE Bearing Seal	Without Bearing Seal
