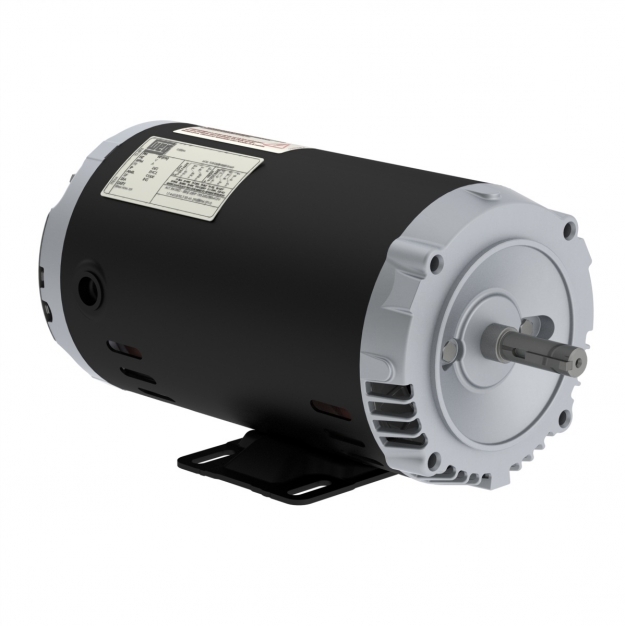

Rolled Steel Premium Efficiency 0.5 HP 4P W56C 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted

Name: .50HP 1800 575 ODP W56C W01 DOE
Brand: WEG
SKU: OC.50504W01DOE
Price: 316.00 CAD
Availability: InStock

Part Number: OC.50504W01DOE

List Price: $316.00

Quantity:

Request Different Configuration

Inventory: In stock

HP	0.5 HP
RPM	1800 rpm

Voltage	575 V
Enclosure	IC01 - ODP

Flange	C
Output	0.5 HP (0.37 kW)
Terminal Box	Without Terminal Box
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.15
Moment of Inertia (J)	0.0439 sq.ft.lb
Breakdown Torque	320 %
No Load Current	0.426 A
L. R. Amperes	4.04 A
Slip	3.61 %
Mounting	F-1
Standard	NEMA MG-1
Impregnation Method	Dip and Bake Polyester
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Without Fan Cover
Fan Material	Without fan
Balancing Method	Not Balanced
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6203 ZZ
NDE Bearing Seal	Without Bearing Seal
