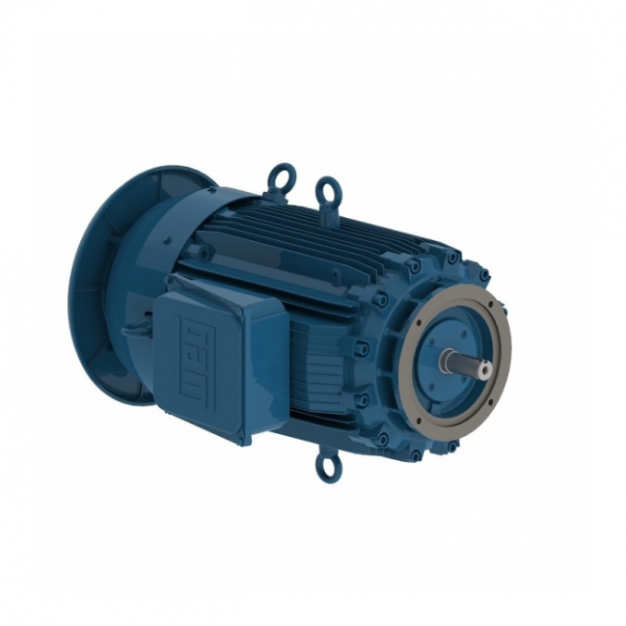

W21 In Line Extra Thrust High Efficiency 250 HP 2P 447LP 3Ph 575 V 60 Hz IC411 - TEFC - Footless

Name: 250HP 3600 575 447LP NP SP GREASE
Brand: WEG
SKU: LP250502NP
Price: 1.00 CAD
Availability: InStock

Part Number: LP250502NP

List Price: Please contact us for pricing

Quantity:

Request Different Configuration

Inventory: Call for stock

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

HP	250 HP
RPM	3600 rpm

Voltage	575 V
Enclosure	IC411 - TEFC

Frame	447LP
Voltage	575 V
Number of Poles	2
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	50.3 sq.ft.lb
Breakdown Torque	280 %
No Load Current	48.7 A
L. R. Amperes	1720 A
Slip	0.83 %
Mounting	W-6
Frequency	60 Hz
Frame Material	Cast Iron
Main Terminal Box Hole	2xNPT 3"
Drain	Rubber, automatic
Painting	RAL 5009 203A (ISO 12944 - C3)
Fan Cover Material	Steel
Fan Material	Aluminum
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Isoflex NBU-15
Rotation	Both (CW and CCW)
Bearing Type	6314 C3
NDE Bearing Seal	Lip Seal
