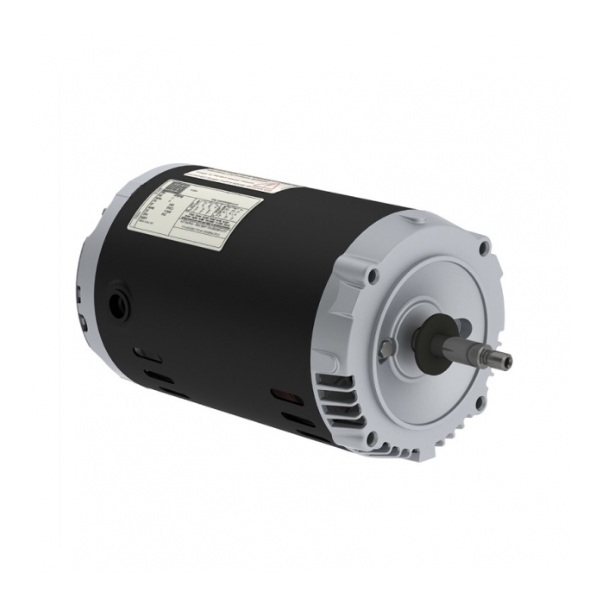

Rolled Steel Jet Pump - C type Premium Efficiency 0.75 HP 2P W56C 3Ph 575 V 60 Hz IC01 - ODP - Footless

Name: .75HP 3600 575 ODP W56C KEY JET W01 DOE
Brand: WEG
SKU: KO.75502W01DOE
Price: 331.00 CAD
Availability: InStock

Part Number: KO.75502W01DOE

List Price: $331.00

Quantity:

Request Different Configuration

Inventory: In stock

HP	0.75 HP
RPM	3600 rpm

Voltage	575 V
Enclosure	IC01 - ODP

Flange	C
Output	0.75 HP (0.550 kW)
Terminal Box	Without Terminal Box
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.50
Moment of Inertia (J)	0.0190 sq.ft.lb
Breakdown Torque	400 %
No Load Current	0.640 A
L. R. Amperes	7.36 A
Slip	4.17 %
Mounting	F-1
Standard	NEMA MG-1
Impregnation Method	Dip and Bake Polyester
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Without Fan Cover
Fan Material	Without fan
Balancing Method	Not Balanced
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	CCW
Bearing Type	6203 2RS
NDE Bearing Seal	Without Bearing Seal
