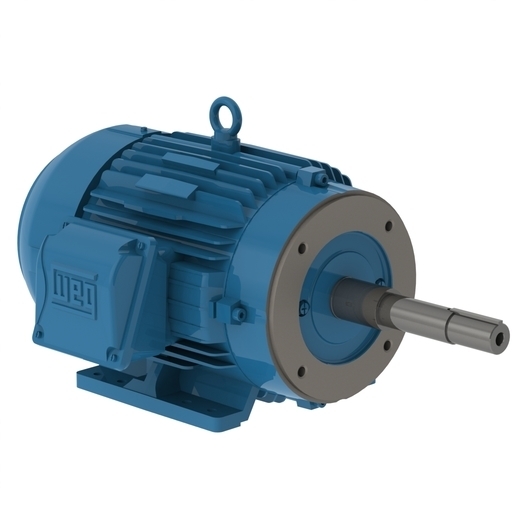

W22 Close Coupled Pump JP NEMA Premium Efficiency 25 HP 2P 284/6JP 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

Name: 25 HP 3600 575 TEFC 284/6JP NP W22
Brand: WEG
SKU: JP025502NPW22
Price: 3621.00 CAD
Availability: InStock

Part Number: JP025502NPW22

List Price: $3,621.00

Quantity:

Request Different Configuration

Inventory: Low Inventory

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

HP	25 HP
RPM	3600 rpm

Voltage	575 V
Enclosure	IC411 - TEFC

Frame	284/6JP
Voltage	575 V
Number of Poles	2
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	2.69 sq.ft.lb
Breakdown Torque	229 %
No Load Current	5.82 A
L. R. Amperes	145 A
Slip	1.53 %
Mounting	F-1
Frequency	60 Hz
Frame Material	Cast Iron
Main Terminal Box Hole	NPT 1 1/2"
Drain	Rubber, automatic
Painting	RAL 5009 203A (ISO 12944 - C3)
Fan Cover Material	Cast Iron
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6311 C3
NDE Bearing Seal	V'Ring
