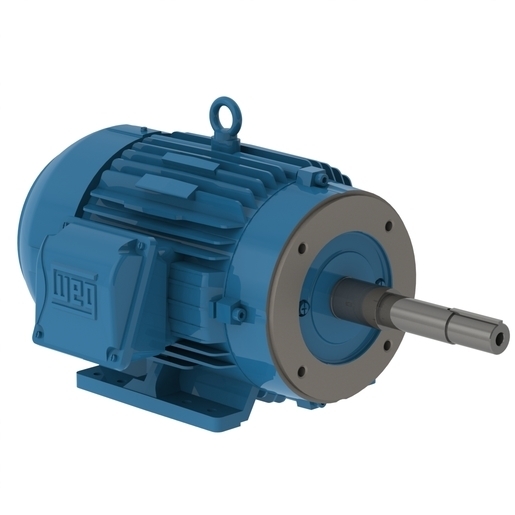

W22 Close Coupled Pump JP NEMA Premium Efficiency 15 HP 2P 213/5JP 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

Name: 15 HP 3600 575 TEFC 213/5JP NP W22
Brand: WEG
SKU: JP015502NPW22215JP
Price: 2060.00 CAD
Availability: InStock

Part Number: JP015502NPW22215JP

List Price: $2,060.00

Quantity:

Request Different Configuration

Inventory: Low Inventory

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

HP	15 HP
RPM	3600 rpm

Voltage	575 V
Enclosure	IC411 - TEFC

Frame	213/5JP
Voltage	575 V
Number of Poles	2
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.6360 sq.ft.lb
Breakdown Torque	280 %
No Load Current	4.64 A
L. R. Amperes	107 A
Slip	2.22 %
Mounting	F-1
Frequency	60 Hz
Frame Material	Cast Iron
Main Terminal Box Hole	NPT 1"
Drain	Rubber, automatic
Painting	RAL 5009 207A (ISO 12944 - C3)
Fan Cover Material	Steel
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6309 Z C3
NDE Bearing Seal	V'Ring
