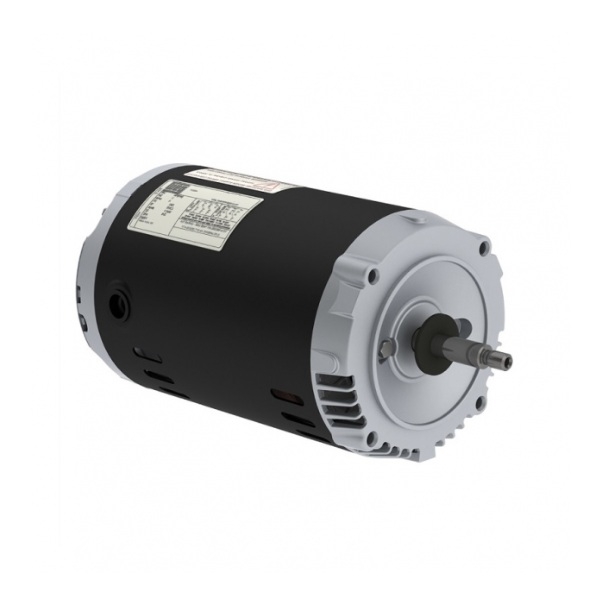

Rolled Steel Jet Pump - J type Premium Efficiency 0.75 HP 2P W56J 3Ph 208-230/460//190-220/380-415 V 60 Hz IC01 - ODP - Footless

Name: .75HP 3600 2X4 ODP W56J THR JET W01 DOE
Brand: WEG
SKU: JO.75402W01DOE
Price: 662.00 CAD
Availability: InStock

Part Number: JO.75402W01DOE

List Price: $662.00

Quantity:

Request Different Configuration

Inventory: Call for stock

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

Voltage	208-230/460//190-220/380-415 V
RPM	3600 rpm

HP	0.75 HP
Enclosure	IC01 - ODP

Flange	C
Output	0.75 HP (0.550 kW)
Terminal Box	Without Terminal Box
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.50 (1.00 @ 208V)
Moment of Inertia (J)	0.0190 sq.ft.lb
Breakdown Torque	400 %
No Load Current	1.38-1.60/0.800 A
L. R. Amperes	20.4-18.4/9.20 A
Slip	4.17 %
Mounting	W-6
Standard	NEMA MG-1
Impregnation Method	Dip and Bake Polyester
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Without Fan Cover
Fan Material	Without fan
Balancing Method	Not Balanced
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	CCW
Bearing Type	6203 2RS
NDE Bearing Seal	Without Bearing Seal
