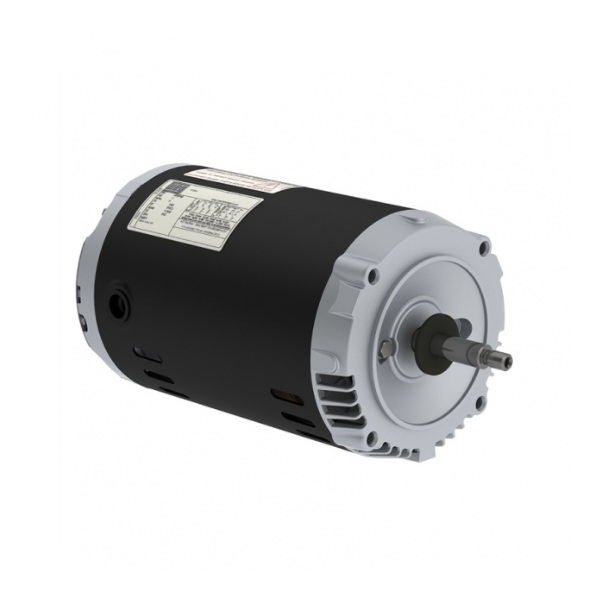

Rolled Steel Jet Pump - J type Premium Efficiency 0.5 HP 2P W56J 3Ph 230/460 V 60 Hz IC01 - ODP - Footless

Name: .50HP 3600 2X4 ODP W56J JET W01 DOE
Brand: WEG
SKU: JO.50402W01DOE
Price: 273.00 CAD
Availability: InStock

Part Number: JO.50402W01DOE

List Price: $273.00

Quantity:

Request Different Configuration

Inventory: Low Inventory

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

HP	0.5 HP
RPM	3600 rpm

Voltage	230/460 V
Enclosure	IC01 - ODP

Flange	C
Output	0.5 HP (0.37 kW)
Terminal Box	Without Terminal Box
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.60
Moment of Inertia (J)	0.0142 sq.ft.lb
Breakdown Torque	400 %
No Load Current	1.20/0.600 A
L. R. Amperes	12.8/6.42 A
Slip	4.17 %
Mounting	F-1
Standard	NEMA MG-1
Impregnation Method	Dip and Bake Polyester
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Without Fan Cover
Fan Material	Without fan
Balancing Method	Not Balanced
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	CCW
Bearing Type	6203 2RS
NDE Bearing Seal	Without Bearing Seal
