Close Coupled Pump NEMA Premium Efficiency 30 HP 2P 284JM 3Ph 230/460 V 60 Hz IC01 - ODP - Footless

Name: 30 HP 3600 2X4V ODP 284JM NP VERTICL
Brand: WEG
SKU: JM030402DPNPS
Price: 8948.00 CAD
Availability: InStock

Part Number: JM030402DPNPS

List Price: $8,948.00

Quantity:

Request Different Configuration

Low Inventory

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

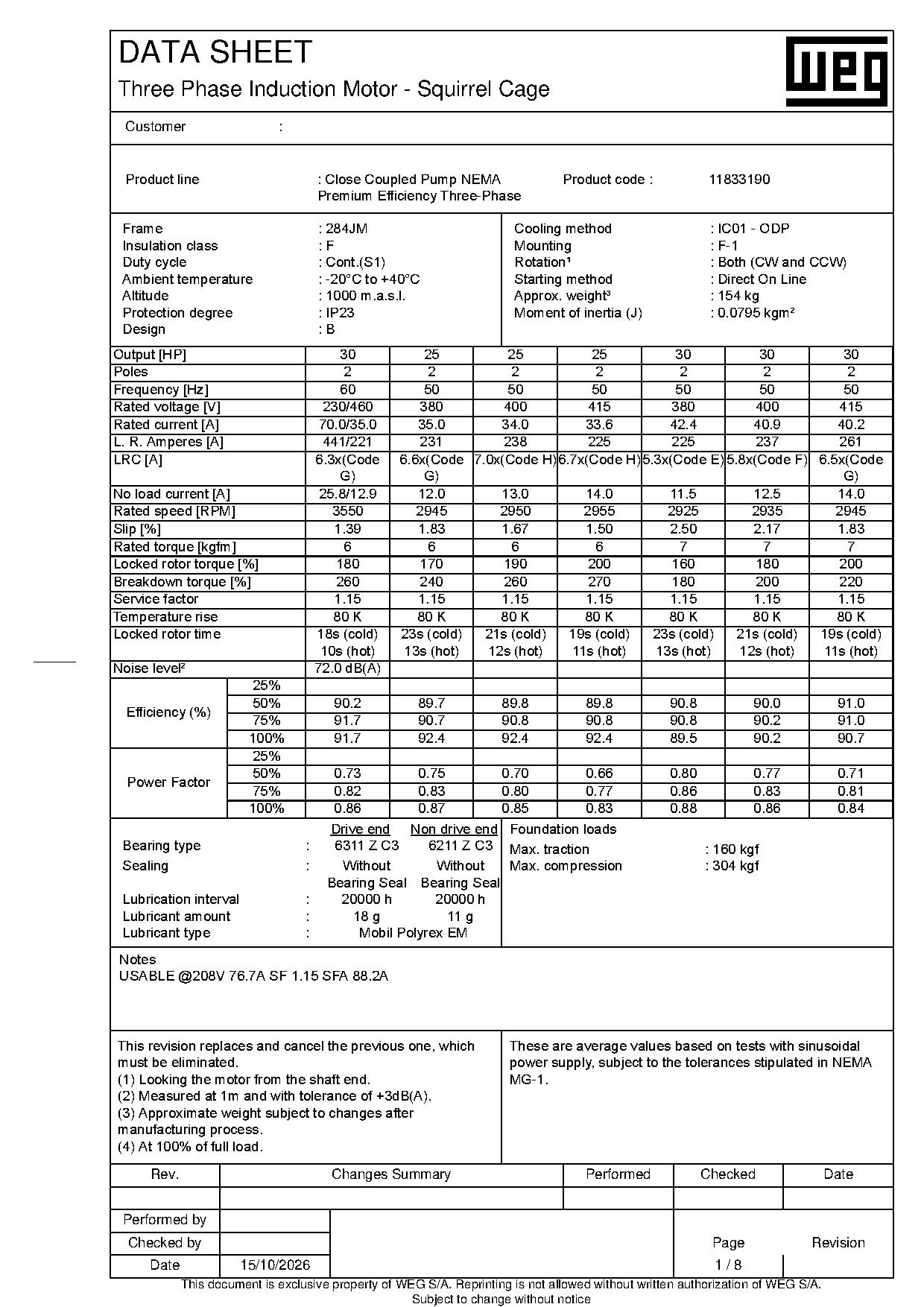

Output	30 HP (22 kW)
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	1.89 sq.ft.lb
Breakdown Torque	260 %
No Load Current	25.8/12.9 A
L. R. Amperes	441/221 A
Slip	1.39 %
Mounting	F-1
Frequency	60 Hz
Frame Material	Cast Iron
Main Terminal Box Hole	NPT 1 1/2"
Shaft Material	SAE 1040/45 Carbon Steel
Grounding Lugs	Single
Fan Material	Without fan
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6311 Z C3
