W22 Close Coupled Pump JM NEMA Premium Efficiency 10 HP 2P 213/5JM 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

Name: 10 HP 3600 575 TEFC 213/5JM NP W22
Brand: WEG
SKU: JM010502NPW22
Price: 2890.00 CAD
Availability: InStock

Part Number: JM010502NPW22

List Price: $2,890.00

Quantity:

Request Different Configuration

Inventory: In stock

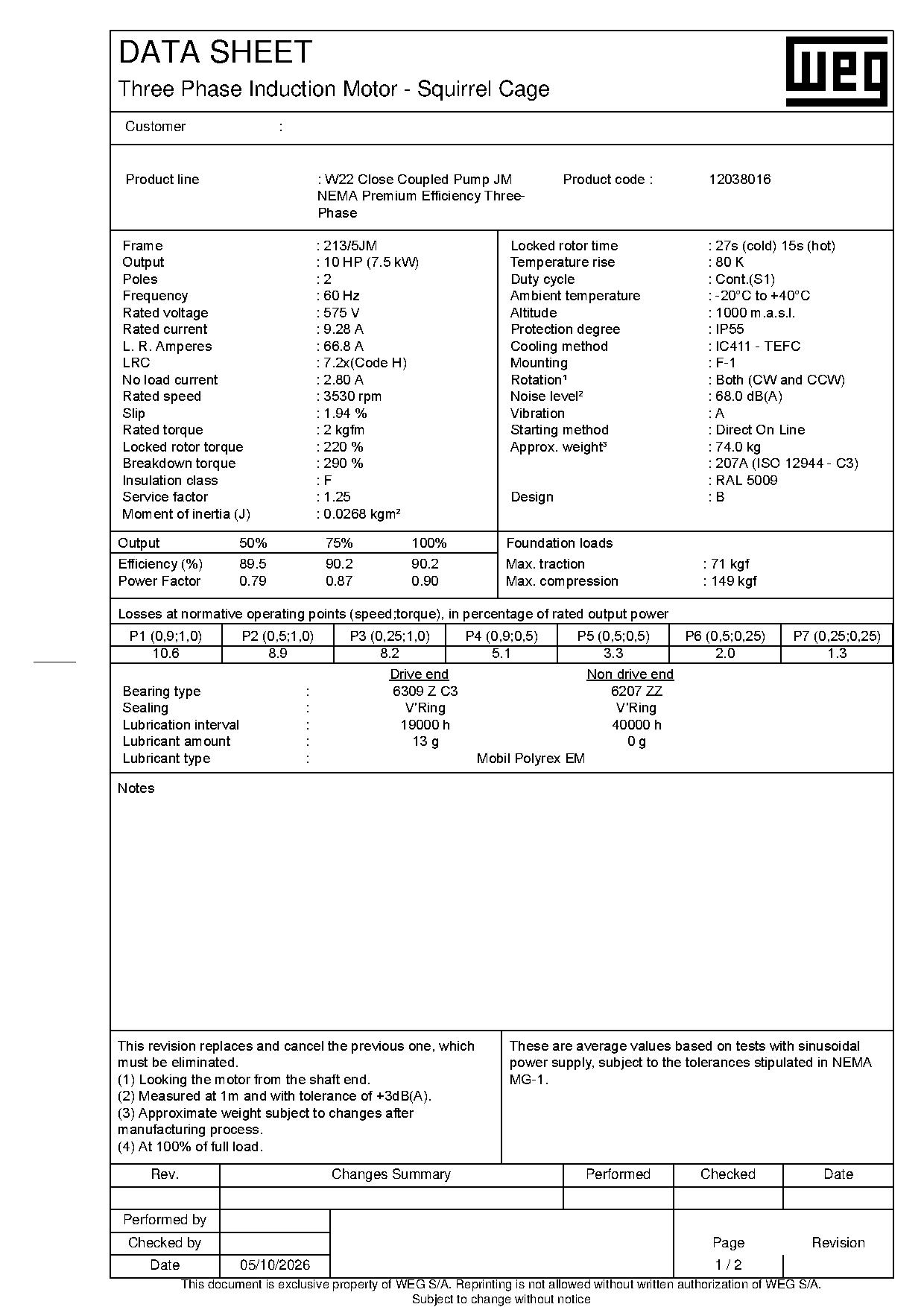

Voltage	575 V
RPM	3600 rpm

HP	10 HP
Enclosure	IC411 - TEFC

Frame	213/5JM
Voltage	575 V
Number of Poles	2
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.6362 sq.ft.lb
Breakdown Torque	290 %
No Load Current	2.88 A
L. R. Amperes	66.8 A
Slip	1.94 %
Mounting	F-1
Frequency	60 Hz
Frame Material	Cast Iron
Main Terminal Box Hole	NPT 1"
Drain	Rubber, automatic
Painting	RAL 5009 207A (ISO 12944 - C3)
Fan Cover Material	Steel
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6309 Z C3
NDE Bearing Seal	V'Ring
