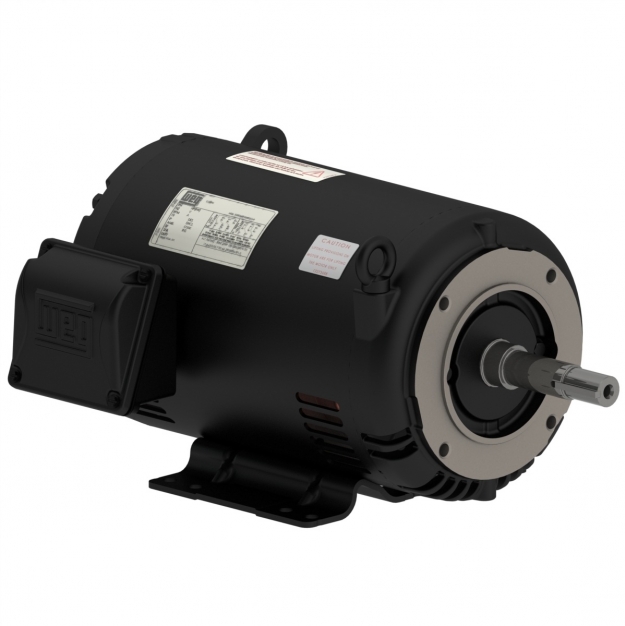

Rolled Steel JM Pump NEMA Premium Efficiency 10 HP 2P 213/5JM 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted

Name: 10 HP 3600 575V ODP 213/5JM NP W01
Brand: WEG
SKU: JM010502DPNPW01
Price: 1117.00 CAD
Availability: InStock

Part Number: JM010502DPNPW01

List Price: $1,117.00

Quantity:

Request Different Configuration

Inventory: Low Inventory

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

HP	10 HP
RPM	3600 rpm

Voltage	575 V
Enclosure	IC01 - ODP

Frame	213/5JM
Voltage	575 V
Number of Poles	2
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.4651 sq.ft.lb
Breakdown Torque	280 %
No Load Current	3.73 A
L. R. Amperes	65.3 A
Slip	1.81 %
Mounting	F-1
Standard	NEMA MG-1
Impregnation Method	Dip and Bake Polyester
Terminal Block	Without
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Without Fan Cover
Fan Material	Without fan
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6209 ZZ
NDE Bearing Seal	Without Bearing Seal
