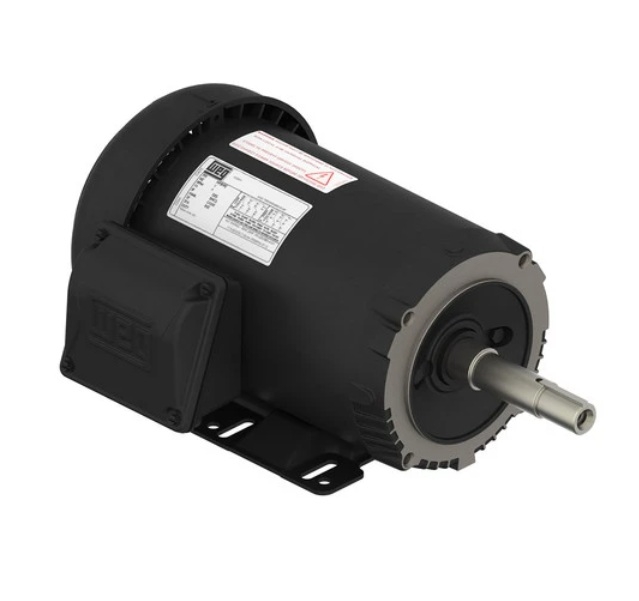

ELECTRIC MOTOR THREE PHASE 2 HP 02 143/5JM 575 C/W 6 leads WCF2 60Hz F-1/B34R(D) IP55 DIMENSIONS ACC. CONFIGURATION NEMA PREMIUM EFFICIENCY CLOSE

Name: 2 HP 3600 575 TEFC 143/5JM NP W01
Brand: WEG
SKU: JM002502NPW01
Price: 1124.00 CAD
Availability: InStock

Part Number: JM002502NPW01

List Price: $1,124.00

Quantity:

Request Different Configuration

Inventory: Low Inventory

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

Voltage	575V
Enclosure	IC411 - TEFC

Frame	143/5JM
Voltage	575 V
Number of Poles	2
Class	MOTOR ROLLED STEEL
Detail	NEMA PREMIUM EFFICIENCY
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.1279 sq.ft.lb
Breakdown Torque	300 %
No Load Current	0.850 A
L. R. Amperes	19.6 A
Slip	2.22 %
Mounting	F-1/B34R(D)
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	1.118"
Drain	Rubber, automatic
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Industrial polymer
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6206 ZZ
NDE Bearing Seal	Without Bearing Seal
