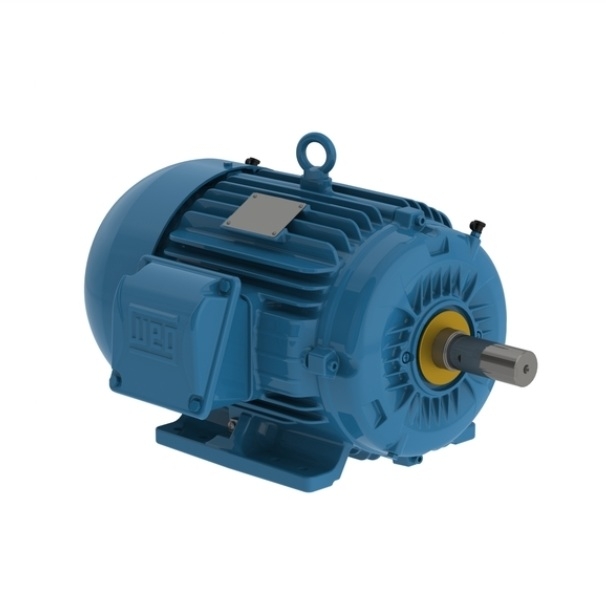

W22 IEEE 841 NEMA Premium Efficiency 15 HP 8P 284/6T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted

Name: 15 HP 900 460V TEFC 284/6T IEEE841 IS
Brand: WEG
SKU: IE015408W22IS
Price: 10900.00 CAD
Availability: InStock

Part Number: IE015408W22IS

List Price: $10,900.00

Quantity:

Request Different Configuration

Inventory: Call for stock

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

Voltage	460 V
RPM	900 rpm

HP	15 HP
Enclosure	IC411 - TEFC

Frame	284/6T
Voltage	460 V
Number of Poles	8
Class	ELECTRIC MOTOR
Detail	NEMA PREMIUM EFFICIENCY
Polarity	08
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.25
Design	B
Locked Rotor Time	45s (cold) 25s (hot)
Rated Torque	89.5 ft.lb
LRC	5.5x(Code G)
Rated Current	19.6 A
Rated Speed	880 rpm
Degree of Protection	IP56
Standard	00006
Impregnation Method	Dip and Bake Polyester
Terminal Block	Without
Drain	Type T, Threaded
Painting	RAL 5009 00187
Fan Cover Material	Cast Iron
Fan Material	Conductive Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6311 C3
NDE Bearing Seal	Inpro/Seal
