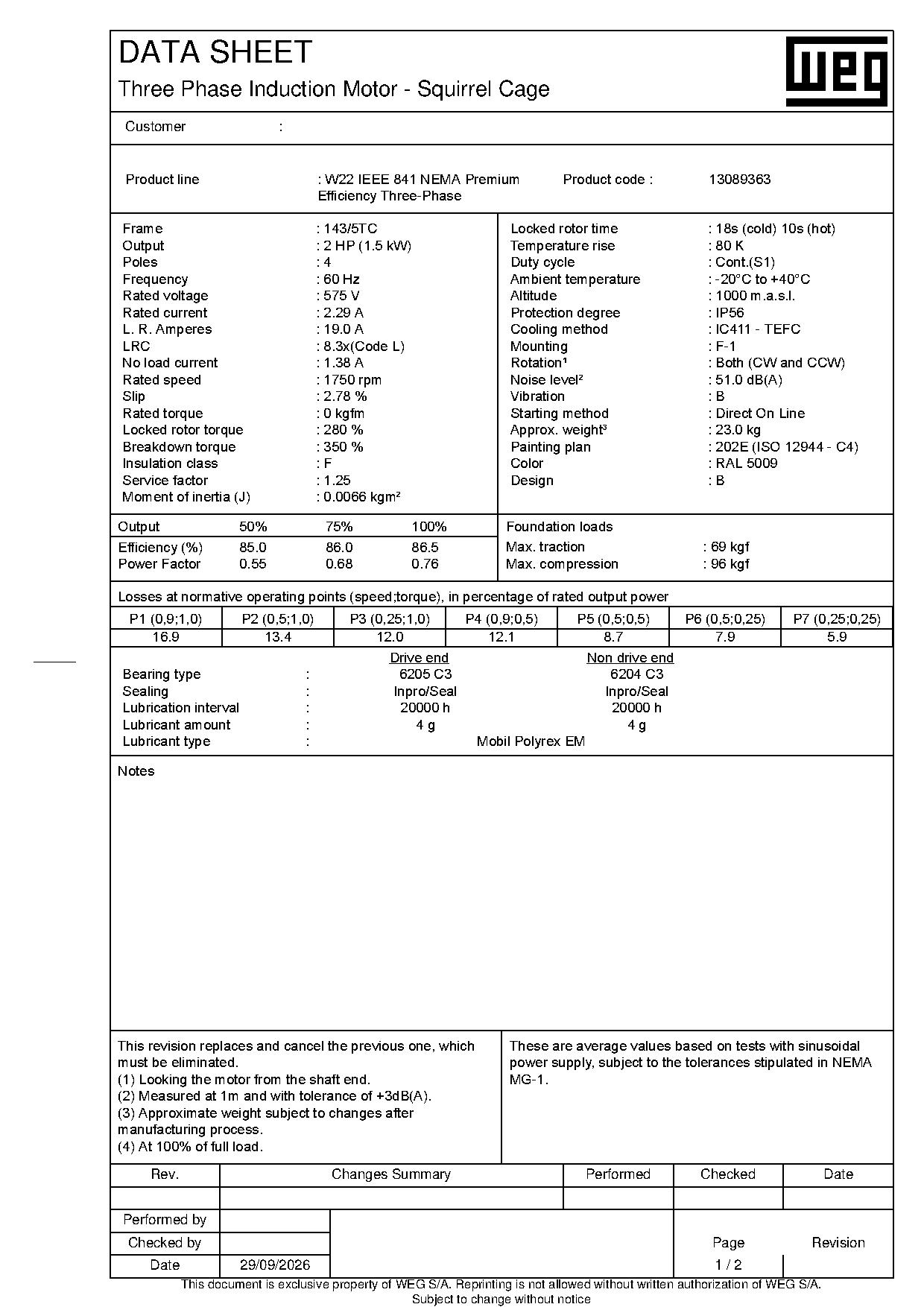

• RATED VOLTAGE: 575 V
• Enclosure: IC411 - TEFC
• Output Rating: 2 HP
• Number of Poles: 4
• TERMINAL BOX: Left position

• FLANGE: C
• Output: 2 HP (1.5 kW)
• FRAME: 143/5TC
• ALTITUDE: 1000 m.a.s.l.
• AMBIENT TEMPERATURE: -20°C to +40°C
• STARTING METHOD: Direct On Line
• DUTY CYCLE: Cont.(S1)
• TEMPERATURE RISE: 80 K
• SERVICE FACTOR: 1.25
• INSULATION CLASS: F
• DESIGN: B
• MOMENT OF INERTIA (J): 0.1561 sq.ft.lb
• LOCKED ROTOR TIME: 18s (cold) 10s (hot)
• BREAKDOWN TORQUE: 320 %
• RATED TORQUE: 6.00 ft.lb
• NO LOAD CURRENT: 1.30 A
• LRC: 8.3x(Code L)
• L. R. AMPERES: 18.5 A
• RATED CURRENT: 2.23 A
• SLIP: 2.78 %
• RATED SPEED: 1750 rpm
• MOUNTING: F-1
• DEGREE OF PROTECTION: IP55
• FREQUENCY: 60 Hz
• SYNCHRONOUS SPEED: 1800 rpm
• STANDARD: NEMA MG-1
• FRAME MATERIAL: Cast Iron
• IMPREGNATION METHOD: Dip and Bake Polyester
• MAIN TERMINAL BOX HOLE: NPT 3/4"
• TERMINAL BLOCK: Without
• SHAFT LOCKING DEVICE: Without
• DRAIN: Type T, Threaded
• SHAFT MATERIAL: SAE 1040/45 Carbon Steel
• PAINTING: RAL 5009 202E (ISO 12944 - C4)
• GROUNDING LUGS: Double
• FAN COVER MATERIAL: Cast Iron
• TROPICALIZED PAINTING: According to IEEE-841 (96h)
• FAN MATERIAL: Conductive Plastic
• BEARING CAP: Yes- Bearing Cap
• DRIP COVER: Without
• OVERLOAD PROTECTOR (PHENOLIC): Without overload protector
• NDE BEARING: 6204 C3
• GREASE TYPE: Mobil Polyrex EM
• LOCKED ROTOR TORQUE: 270 %
• ROTATION: Both (CW and CCW)
• NOISE LEVEL: 51.0 dB(A)
• BEARING TYPE: 6205 C3
• SEALING: Inpro/Seal
• NDE BEARING SEAL: Inpro/Seal
