W21 Explosion-proof Motor NEMA Premium Efficiency 300 HP 4P 449T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

Name: 300HP 1800 575 XP 449T NP RB
Brand: WEG
SKU: HX300504NPRB449T
Price: 90300.00 CAD
Availability: InStock

Part Number: HX300504NPRB449T

List Price: $90,300.00

Quantity:

Request Different Configuration

Inventory: Call for stock

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

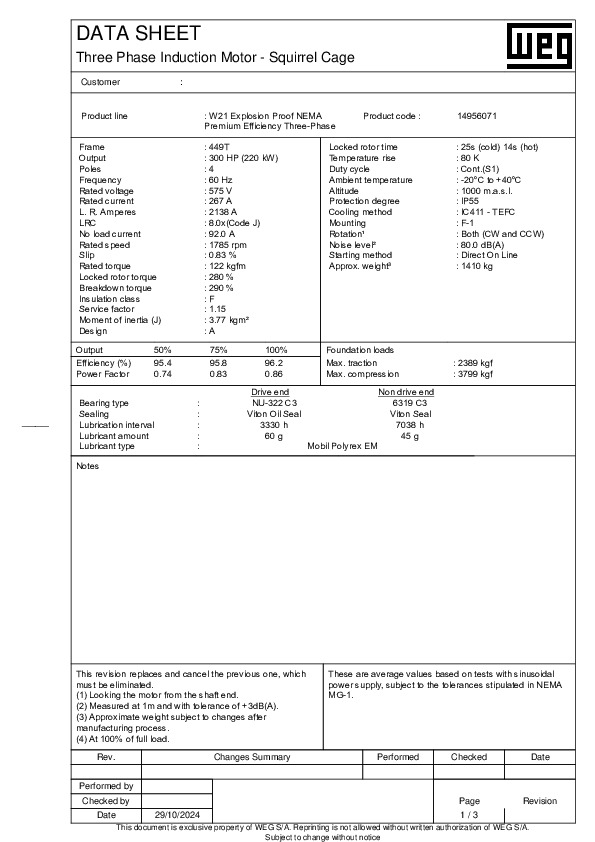

Voltage	575 V
RPM	1800 rpm

HP	300 HP
Enclosure	IC411 - TEFC

Flange	Without
Output	300 HP (220 kW)
Terminal Box	Left position
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.15
Design	A
Locked Rotor Time	25s (cold) 14s (hot)
Rated Torque	883 ft.lb
LRC	8.0x(Code J)
Rated Current	267 A
Rated Speed	1785 rpm
Degree of Protection	IP55
Standard	00006
Impregnation Method	Constant Resin Flow
Terminal Block	Without
Drain	Sinterized, Exd
Painting	RAL 5009 00186
Fan Cover Material	Cast Iron
Fan Material	Aluminum
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	NU-322 C3
NDE Bearing Seal	Viton Seal
