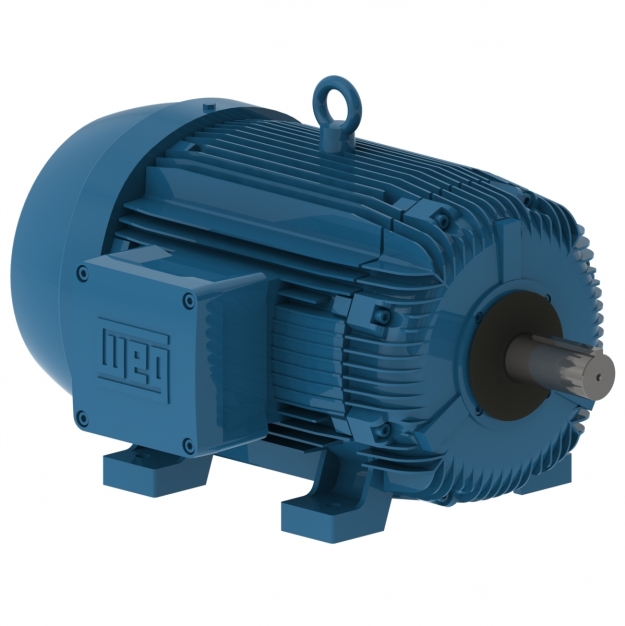

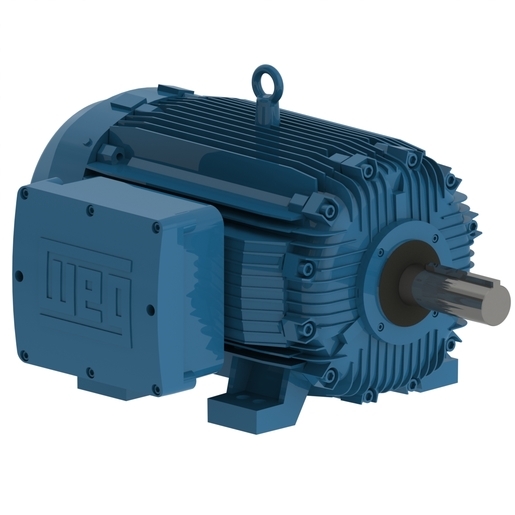

W21 Explosion-proof Motor NEMA Premium Efficiency 150 HP 6P 447T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted

Name: 150HP 1200 460 XP 3 447T NP RB W21X
Brand: WEG
SKU: HX150406NPRB447TW21X
Price: 58016.00 CAD
Availability: InStock

Part Number: HX150406NPRB447TW21X

List Price: $58,016.00

Quantity:

Request Different Configuration

Low Inventory

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

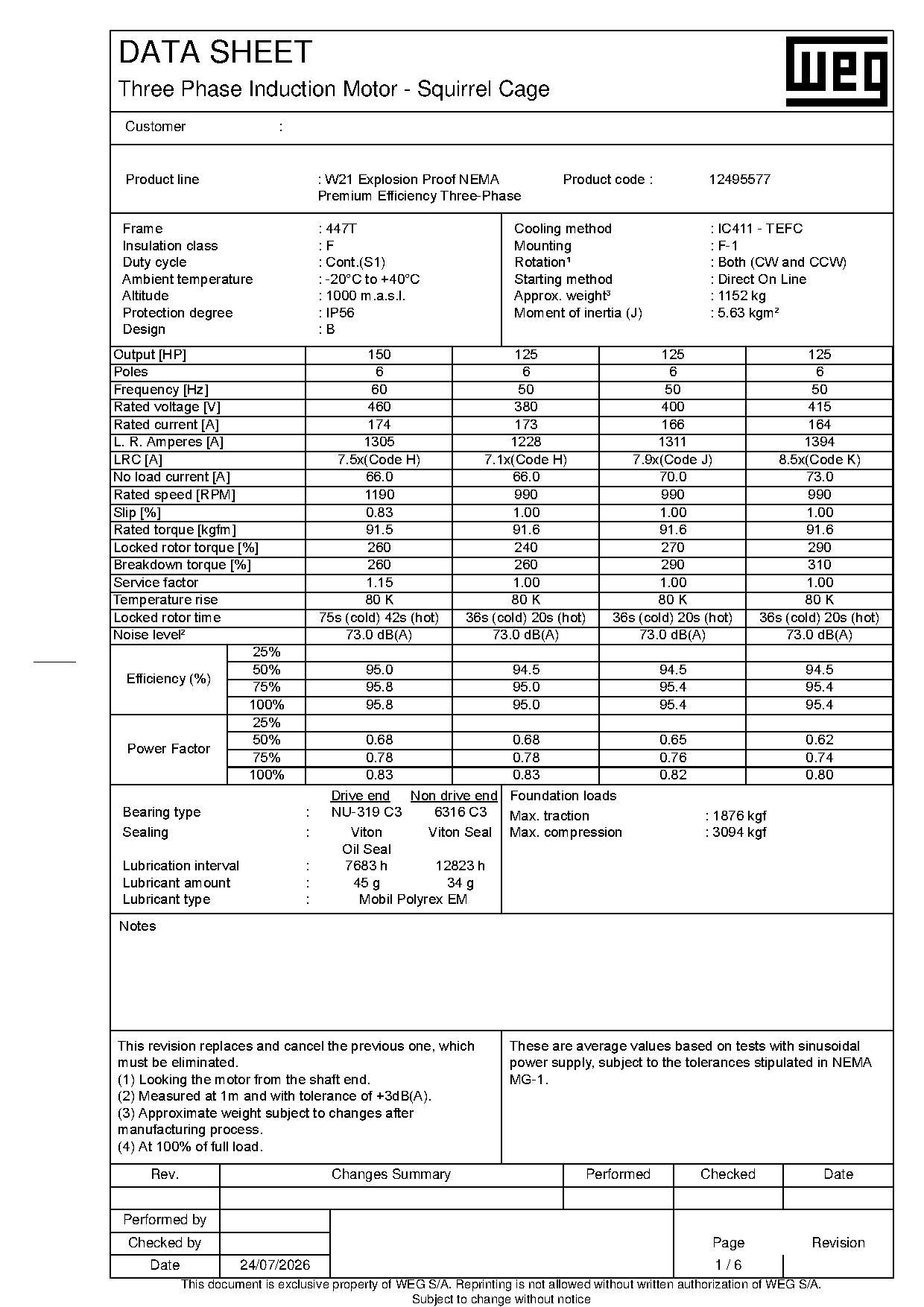

Output	150 HP (110 kW)
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	134 sq.ft.lb
Breakdown Torque	260 %
No Load Current	66.0 A
L. R. Amperes	1305 A
Slip	0.83 %
Mounting	F-1
Frequency	60 Hz
Frame Material	Cast Iron
Main Terminal Box Hole	2xNPT 3"
Shaft Locking Device	With
Shaft Material	SAE 4140 Carbon Steel
Grounding Lugs	Double
Tropicalized Painting	Without
Bearing Cap	Yes- Bearing Cap
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	NU-319 C3
