ELECTRIC MOTOR THREE PHASE 20 HP 06 286T 208-230/460//380 C/W 12 cables 60Hz B3R(D) IP55 EXPLOSION PROOF NEMA PREMIUM EFFICIENCY WFX1

Name: 20 HP 1200 2X4 XP 3 286T NP W21X
Brand: WEG
SKU: HX020406NPW21X
Price: 8276.00 CAD
Availability: InStock

Part Number: HX020406NPW21X

List Price: $8,276.00

Quantity:

Request Different Configuration

Inventory: Low Inventory

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

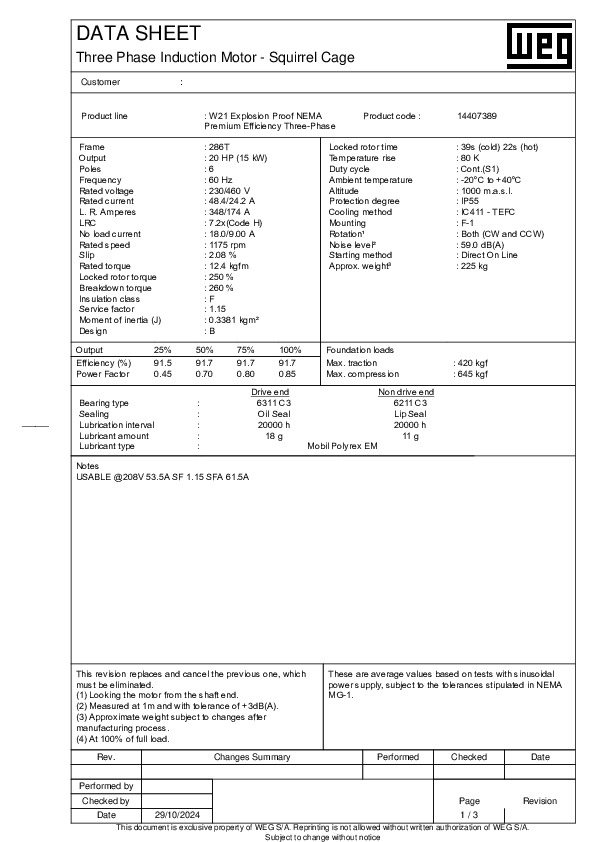

Voltage	208-230/460//380V
RPM	1200 rpm

HP	20 HP
Enclosure	IC411 - TEFC

Frame	286T
Output	20 HP (15 kW)
Terminal Box	Left position
Application	EXPLOSION PROOF
Power	20 HP
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	8.02 sq.ft.lb
Breakdown Torque	260 %
No Load Current	18.0/9.00 A
L. R. Amperes	348/174 A
Slip	2.08 %
Mounting	B3R
Frequency	60 Hz
Frame Material	Cast Iron
Main Terminal Box Hole	NPT 1 1/2"
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Grounding Lugs	Single
Tropicalized Painting	Without
Bearing Cap	Yes- Bearing Cap
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6311 2RS C3
NDE Bearing Seal	Lip Seal
