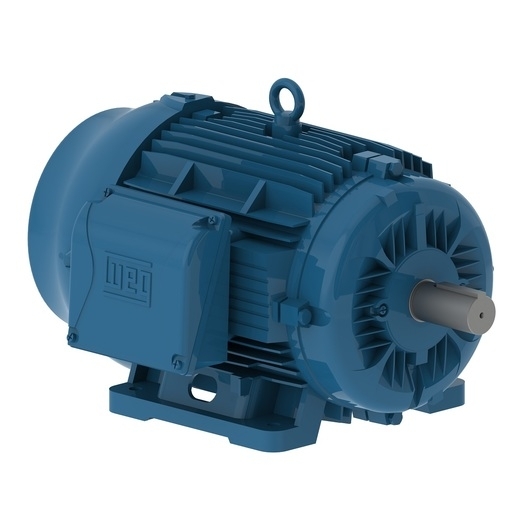

W22 NEMA Premium Efficiency 25 HP 8P 324/6T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

Name: 25 HP 900 2X4 TEFC 324/6T NP W22
Brand: WEG
SKU: HT025408NPW22
Price: 10442.00 CAD
Availability: InStock

Part Number: HT025408NPW22

List Price: $10,442.00

Quantity:

Request Different Configuration

Inventory: Low Inventory

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

Voltage	230/460//380 V
RPM	900 rpm

HP	25 HP
Enclosure	IC411 - TEFC

Frame	324/6T
Voltage	230/460 V
Number of Poles	8
Class	ELECTRIC MOTOR
Detail	NEMA PREMIUM EFFICIENCY
Polarity	08
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.25
Design	B
Locked Rotor Time	41s (cold) 23s (hot)
Rated Torque	149 ft.lb
LRC	5.2x(Code G)
Rated Current	71.8/35.9 A
Rated Speed	880 rpm
Degree of Protection	IP55
Standard	00006
Impregnation Method	Dip and Bake Polyester
Terminal Block	Without
Drain	Rubber, automatic
Painting	RAL 5009 203A (ISO 12944 - C3)
Fan Cover Material	Cast Iron
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6312 C3
NDE Bearing Seal	V'Ring
