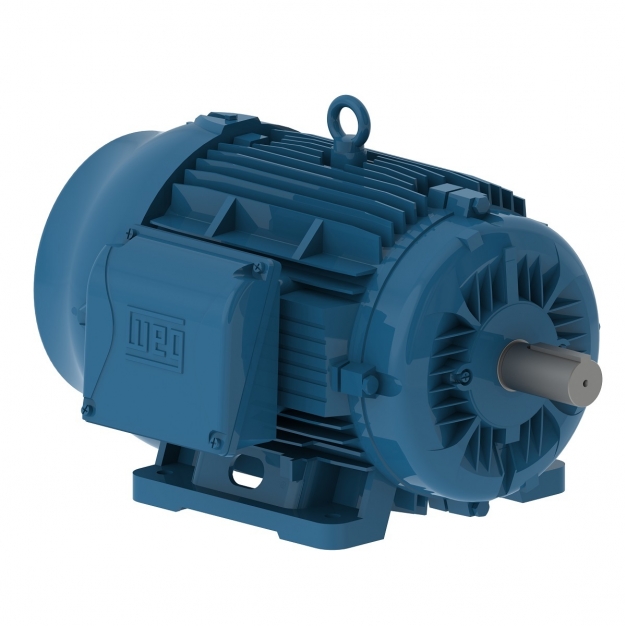

W22 NEMA Premium Efficiency 20 HP 4P 254/6T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

Name: 20 HP 1800 575V TEFC 254/6T NP W22
Brand: WEG
SKU: HT020504NPW22
Price: 3782.00 CAD
Availability: InStock

Part Number: HT020504NPW22

List Price: $3,782.00

Quantity:

Request Different Configuration

Inventory: In stock

Voltage	575 V
RPM	1800 rpm

HP	20 HP
Enclosure	IC411 - TEFC

Flange	Without
Output	20 HP (15 kW)
Terminal Box	Left position
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.25
Design	B
Locked Rotor Time	54s (cold) 30s (hot)
Rated Torque	59.3 ft.lb
LRC	6.9x(Code H)
Rated Current	19.3 A
Rated Speed	1770 rpm
Degree of Protection	IP55
Standard	00006
Impregnation Method	Dip and Bake Polyester
Terminal Block	Without
Drain	Rubber, automatic
Painting	RAL 5009 203A (ISO 12944 - C3)
Fan Cover Material	Cast Iron
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6309 C3
NDE Bearing Seal	V'Ring
