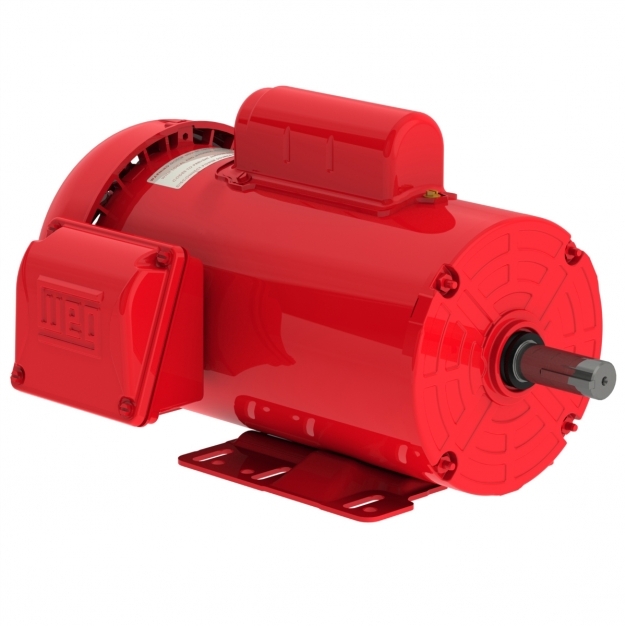

ELECTRIC MOTOR SINGLE PHASE 0.5 HP 04 W56 115/230 WCF2 60Hz F-1/B3R(D) IP55 DIMENSIONS ACC. CONFIGURATION FARM DUTY

Name: .50HP 4P 1X2 TEFC W56 FARM DUTY W01
Brand: WEG
SKU: FD.50104W01
Price: 602.00 CAD
Availability: InStock

Part Number: FD.50104W01

List Price: $602.00

Quantity:

Request Different Configuration

Inventory: In stock

HP	0.5 HP
RPM	1800 rpm

Voltage	115/230V
Enclosure	IC411 - TEFC

Flange	Without
Output	0.5 HP (0.37 kW)
Terminal Box	Left position
Application	ROLLED STEEL
Power	0.5 HP
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.0479 sq.ft.lb
Breakdown Torque	270 %
No Load Current	6.60/3.30 A
L. R. Amperes	45.6/22.8 A
Slip	3.89 %
Mounting	F-1/B3R(D)
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	0.881"
Drain	Rubber, automatic
Painting	RAL 3003 207N (ISO 12944 - C2)
Fan Cover Material	Industrial polymer
Fan Material	Plastic
Balancing Method	Not Balanced
Overload Protector (Phenolic)	Manual
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6203 2RS
NDE Bearing Seal	Without Bearing Seal
