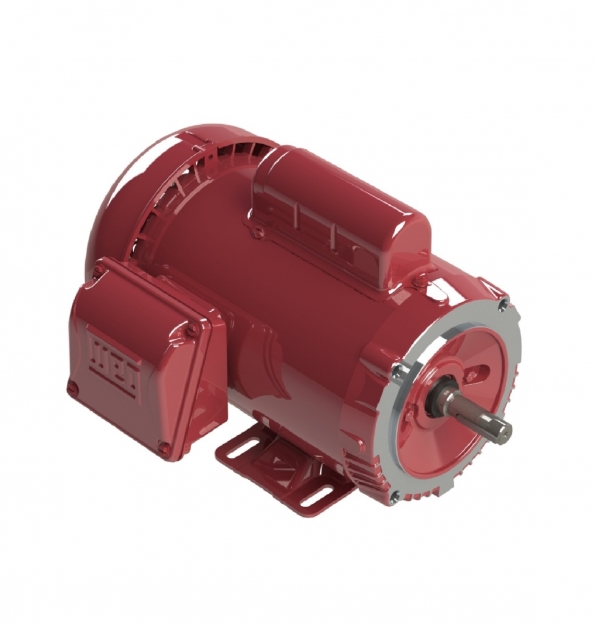

ELECTRIC MOTOR SINGLE PHASE 0.33 HP 04 W56C 115/230 WCF2 60Hz F-1/B34R(D) IP55 FARM DUTY IHP

Name: .33HP 4P 1X2 TEFC W56C FARM DUTY W01
Brand: WEG
SKU: FD.33104W01C
Price: 700.00 CAD
Availability: InStock

Part Number: FD.33104W01C

List Price: $700.00

Quantity:

Request Different Configuration

Inventory: In stock

Voltage	115/230V
RPM	1800 rpm

HP	0.33 HP
Enclosure	IC411 - TEFC

Frame	W56C
Output	0.33 HP (0.25 kW)
Terminal Box	Left position
Application	ROLLED STEEL
Power	0.33 HP
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.0399 sq.ft.lb
Breakdown Torque	280 %
No Load Current	5.40/2.70 A
L. R. Amperes	33.6/16.8 A
Slip	3.61 %
Mounting	F-1/B34R(D)
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	0.881"
Drain	Rubber, automatic
Painting	RAL 3003 207N (ISO 12944 - C2)
Fan Cover Material	Industrial polymer
Fan Material	Plastic
Balancing Method	Not Balanced
Overload Protector (Phenolic)	Manual
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6203 2RS
NDE Bearing Seal	Without Bearing Seal
