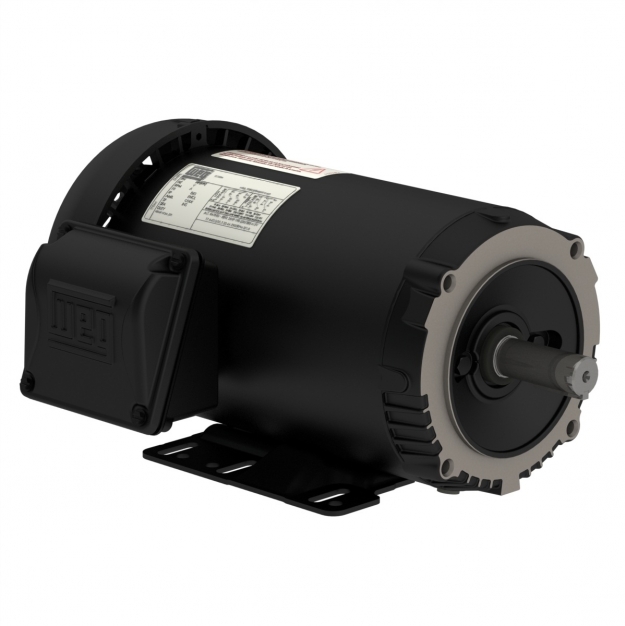

ELECTRIC MOTOR THREE PHASE ROTOR SQUIRREL CAGE 2 HP 02 56HC 575 C/W 3 leads WCF2 60Hz F-1/B34R(D) IP55 PREMIUM EFFICIENCY ROLLED STEEL TRIF

Name: 2 HP 3600 575 TEFC 56HC W01 DOE
Brand: WEG
SKU: FC002502W01DOE
Price: 498.00 CAD
Availability: InStock

Part Number: FC002502W01DOE

List Price: $498.00

Quantity:

Request Different Configuration

Inventory: In stock

HP	2 HP
RPM	3600 rpm

Voltage	575V
Enclosure	IC411 - TEFC

Flange	C
Output	2 HP (1.5 kW)
Terminal Box	Left position
Application	ROLLED STEEL
Power	2 HP
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.1279 sq.ft.lb
Breakdown Torque	300 %
No Load Current	0.850 A
L. R. Amperes	19.6 A
Slip	2.22 %
Mounting	F-1/B34R(D)
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	0.881"
Drain	Rubber, automatic
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Industrial polymer
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6204 ZZ
NDE Bearing Seal	Without Bearing Seal
