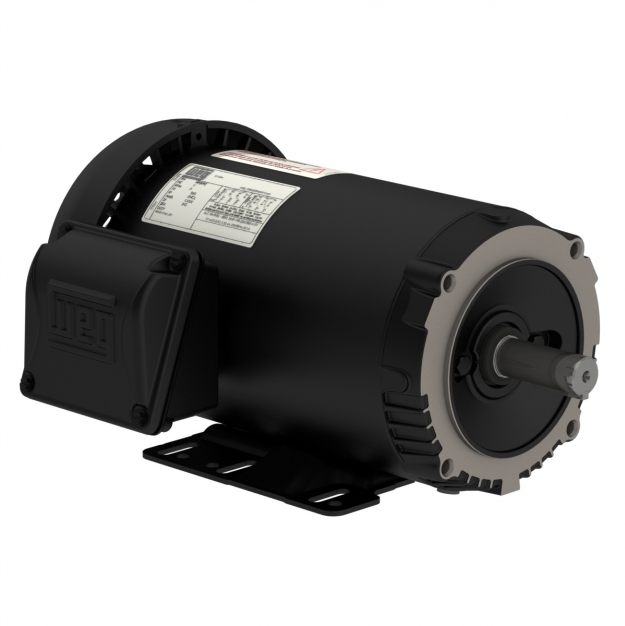

ELECTRIC MOTOR THREE PHASE 0.75 HP 04 56C 575 C/W 3 leads WCF2 60Hz F-1/B34R(D) IP55 PREMIUM EFFICIENCY ROLLED STEEL TRIF

Name: .75HP 1800 575 TEFC 56C W01 DOE
Brand: WEG
SKU: FC.75504W01DOE
Price: 840.00 CAD
Availability: InStock

Part Number: FC.75504W01DOE

List Price: $840.00

Quantity:

Request Different Configuration

Inventory: In stock

HP	0.75 HP
RPM	1800 rpm

Voltage	575V
Enclosure	IC411 - TEFC

Frame	56
Voltage	575 V
Number of Poles	4
Class	MOTOR ROLLED STEEL
Detail	IE2
Polarity	04
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.15
Moment of Inertia (J)	0.0842 sq.ft.lb
Breakdown Torque	360 %
No Load Current	0.658 A
L. R. Amperes	7.33 A
Slip	2.22 %
Mounting	F-1/B34R(D)
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	0.881"
Drain	Rubber, automatic
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Industrial polymer
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6203 ZZ
NDE Bearing Seal	Without Bearing Seal
