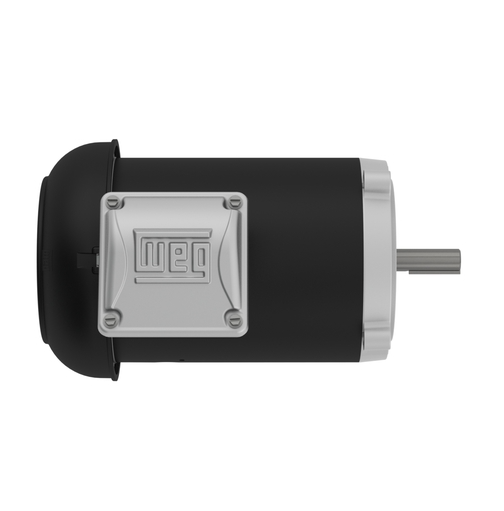

ELECTRIC MOTOR THREE PHASE 0.75 HP 04 56C 208-230/460//190-220/380-415 WCF2 60Hz F-1/B14R(D) IP55 DIMENSIONS ACC. CONFIGURATION PREMIUM EFFICIENC

Name: .75HP 4P 2X4V TEFC 56C W01 DOE FTLS
Brand: WEG
SKU: FC.75404SW01DOE
Price: 840.00 CAD
Availability: InStock

Part Number: FC.75404SW01DOE

List Price: $840.00

Quantity:

Request Different Configuration

Inventory: In stock

Voltage	208-230/460//190-220/380-415V
RPM	1800 rpm

HP	0.75 HP
Enclosure	IC411 - TEFC

Frame	56
Voltage	208-230/460 V
Number of Poles	4
Class	MOTOR ROLLED STEEL
Detail	IE2
Polarity	04
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.15 (1.00 @ 208V)
Moment of Inertia (J)	0.0842 sq.ft.lb
Breakdown Torque	360 %
No Load Current	1.42-1.64/0.822 A
L. R. Amperes	20.3-18.3/9.16 A
Slip	2.22 %
Mounting	F-1/B14R(D)
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	0.881"
Drain	Rubber, automatic
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Industrial polymer
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6203 ZZ
NDE Bearing Seal	Without Bearing Seal
