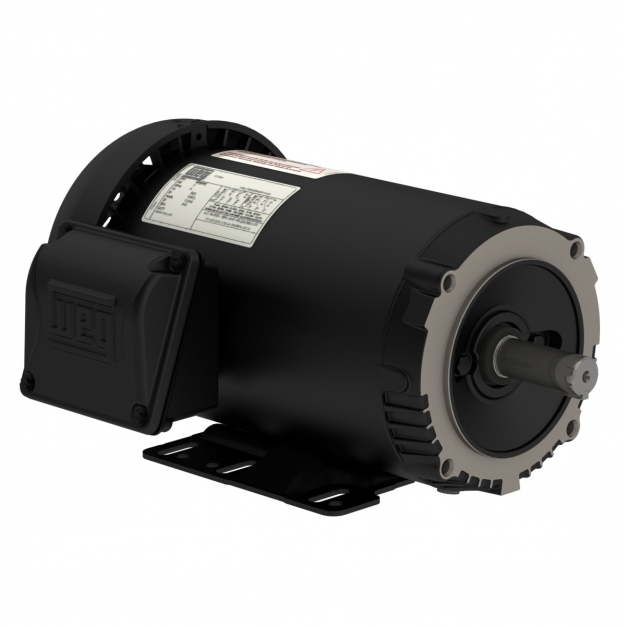

ELECTRIC MOTOR THREE PHASE 0.5 HP 06 56C 575 C/W 3 leads WCF2 60Hz F-1/B34R(D) IP55 DIMENSIONS ACC. CONFIGURATION PREMIUM EFFICIENCY ROLLED STEEL

Name: .50HP 1200 575 TEFC 56C 3PH W01 DOE
Brand: WEG
SKU: FC.50506W01DOE
Price: 864.00 CAD
Availability: InStock

Part Number: FC.50506W01DOE

List Price: $864.00

Quantity:

Request Different Configuration

Inventory: In stock

HP	0.5 HP
Enclosure	IC411 - TEFC

Flange	C
Output	0.5 HP (0.37 kW)
Terminal Box	Left position
Application	ROLLED STEEL
Polarity	06
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.15
Moment of Inertia (J)	0.1065 sq.ft.lb
Breakdown Torque	330 %
No Load Current	0.619 A
L. R. Amperes	4.37 A
Slip	3.33 %
Mounting	F-1/B34R(D)
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	0.881"
Drain	Rubber, automatic
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Industrial polymer
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6203 ZZ
NDE Bearing Seal	Without Bearing Seal
