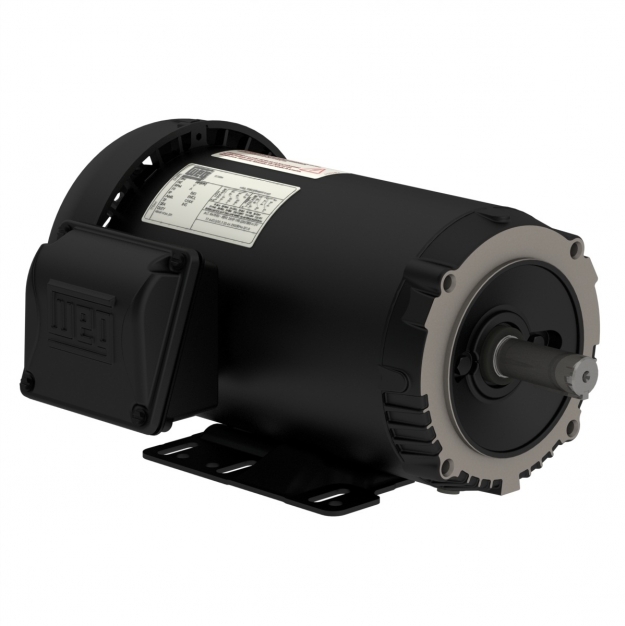

ELECTRIC MOTOR THREE PHASE 0.5 HP 04 W56C 208-230/460//190-220/380-415 WCF2 60Hz F-1/B34R(D) IP55 DIMENSIONS ACC. CONFIGURATION PREMIUM EFFICIENC

Name: .50HP 1800 2X4 TEFC W56C 3PH W01 DOE
Brand: WEG
SKU: FC.50404W01DOE
Price: 768.00 CAD
Availability: InStock

Part Number: FC.50404W01DOE

List Price: $768.00

Quantity:

Request Different Configuration

Inventory: In stock

HP	0.5 HP
Enclosure	IC411 - TEFC

Flange	C
Output	0.5 HP (0.37 kW)
Terminal Box	Left position
Application	ROLLED STEEL
Polarity	04
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.15 (1.00 @ 208V)
Moment of Inertia (J)	0.0520 sq.ft.lb
Breakdown Torque	310 %
No Load Current	0.855-0.992/0.496 A
L. R. Amperes	11.0-9.96/4.98 A
Slip	3.89 %
Mounting	F-1/B34R(D)
Frequency	60 Hz
Frame Material	Rolled Steel
Main Terminal Box Hole	0.881
Drain	Rubber, automatic
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Industrial polymer
Fan Material	Plastic
Balancing Method	Not Balanced
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6203 ZZ
