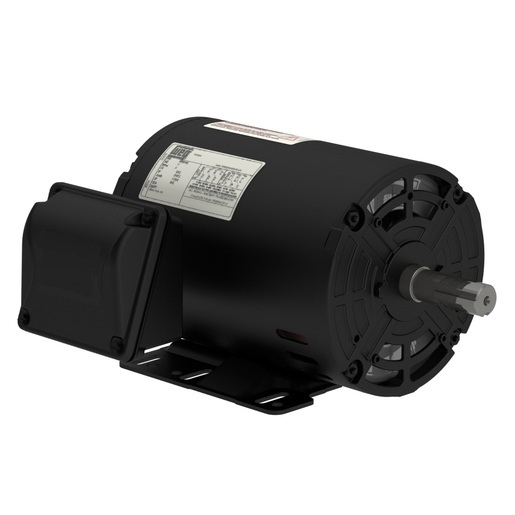

Rolled Steel NEMA Premium Efficiency 5 HP 2P 182/4T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

Name: 5 HP 3600 2X4V ODP 182/4T NP W01
Brand: WEG
SKU: DP005402NPW01
Price: 1146.00 CAD
Availability: InStock

Part Number: DP005402NPW01

List Price: $1,146.00

Quantity:

Request Different Configuration

Inventory: Low Inventory

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

Voltage	230/460//190-220/380-415 V
RPM	3600 rpm

HP	5 HP
Enclosure	IC01 - ODP

Frame	182/4T
Voltage	230/460 V
Number of Poles	2
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	0.1386 sq.ft.lb
Breakdown Torque	300 %
No Load Current	5.15/2.58 A
L. R. Amperes	92.7/46.4 A
Slip	2.50 %
Mounting	F-1
Standard	NEMA MG-1
Impregnation Method	Dip and Bake Polyester
Terminal Block	Without
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Fan Cover Material	Without Fan Cover
Fan Material	Without fan
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6206 ZZ
NDE Bearing Seal	Without Bearing Seal
