W21 Explosion-proof Motor NEMA Premium Efficiency 5 HP 6P 213/5TC 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

Name: 5 HP 1200 575 XP 213/5TC NP W21X
Brand: WEG
SKU: CX005506NPW21X
Price: 4450.00 CAD
Availability: InStock

Part Number: CX005506NPW21X

List Price: $4,450.00

Quantity:

Request Different Configuration

Inventory: Low Inventory

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

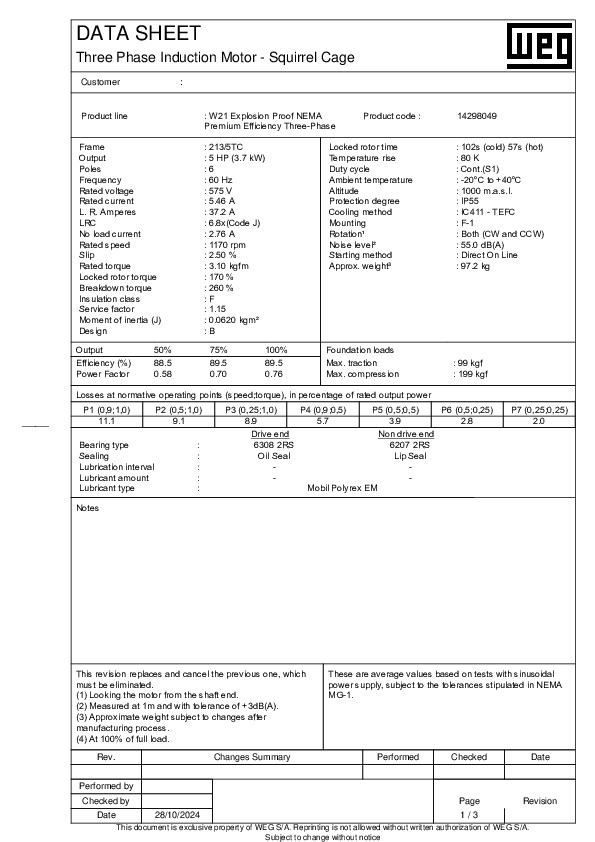

Voltage	575 V
RPM	1200 rpm

HP	5 HP
Enclosure	IC411 - TEFC

Frame	213/5TC
Voltage	575 V
Number of Poles	6
Altitude	1000 m.a.s.l.
Starting Method	Direct On Line
Temperature Rise	80 K
Insulation Class	F
Moment of Inertia (J)	1.47 sq.ft.lb
Breakdown Torque	260 %
No Load Current	2.76 A
L. R. Amperes	37.2 A
Slip	2.50 %
Mounting	F-1
Frequency	60 Hz
Frame Material	Cast Iron
Main Terminal Box Hole	NPT 1"
Shaft Locking Device	Without
Painting	RAL 5009 202P (ISO 12944 - C4)
Fan Cover Material	Steel
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6308 2RS
NDE Bearing Seal	Lip Seal
