*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)
Rated operational current
800 A
Main contacts
3 NO
Terminal type
Screw

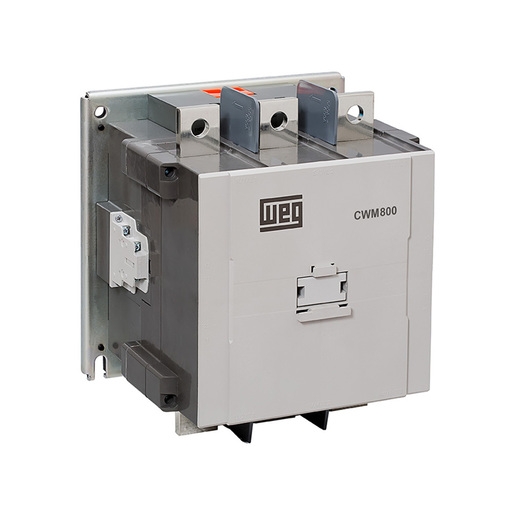

Reference
CWM
Control voltage
100-127V 50/60Hz/100-110V DC
Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1
1000 V
Rated operational frequency - minimum
50 Hz
Mechanical lifespan (AC)
5 million
Degree of protection IP (IEC 60529) - Control circuit
IP20
Rated operational voltage Ue - UL/CSA
600 V
Width
345 mm (13.60 in)
Weight
25.8 kg
Rated insulation voltage Ui (pollution degree 3) - UL, CSA
600 V
Rated operational frequency - maximum
60 Hz
Mechanical lifespan (DC)
5 million
Rated operational voltage
690 V
Height
310 mm (12.20 in)
Depth
246,5 mm (9.70 in)
