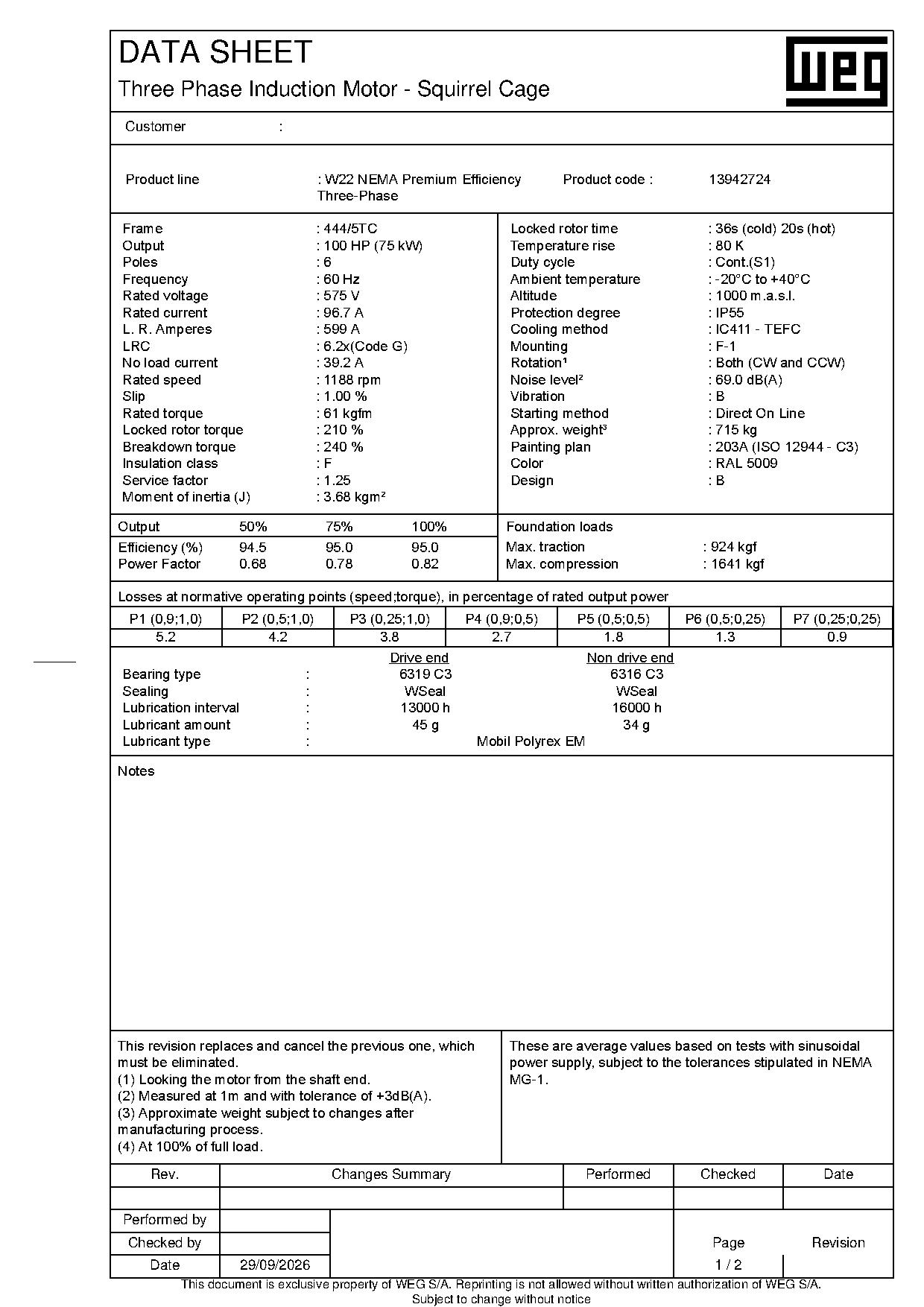

W22 NEMA Premium Efficiency 100 HP 6P 444/5TC 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

Name: 100HP 1200 575 TEFC 444/5TC NP W22 BB
Brand: WEG
SKU: CT100506NPBBW22
Price: 30494.00 CAD
Availability: InStock

Part Number: CT100506NPBBW22

List Price: $30,494.00

Quantity:

Request Different Configuration

Inventory: Low Inventory

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)

Voltage	575 V
RPM	1200 rpm

HP	100 HP
Enclosure	IC411 - TEFC

Flange	C
Output	100 HP (75 kW)
Terminal Box	Left position
Ambient Temperature	-20°C to +40°C
Duty Cycle	Cont.(S1)
Service Factor	1.25
Design	B
Locked Rotor Time	36s (cold) 20s (hot)
Rated Torque	442 ft.lb
LRC	6.2x(Code G)
Rated Current	96.7 A
Rated Speed	1189 rpm
Degree of Protection	IP55
Standard	00006
Impregnation Method	Constant Resin Flow
Terminal Block	Without
Drain	Rubber, automatic
Painting	RAL 5009 203A (ISO 12944 - C3)
Fan Cover Material	Cast Iron
Fan Material	Plastic
Balancing Method	1/2 Key
Overload Protector (Phenolic)	Without overload protector
Grease Type	Mobil Polyrex EM
Rotation	Both (CW and CCW)
Bearing Type	6319 C3
NDE Bearing Seal	WSeal
