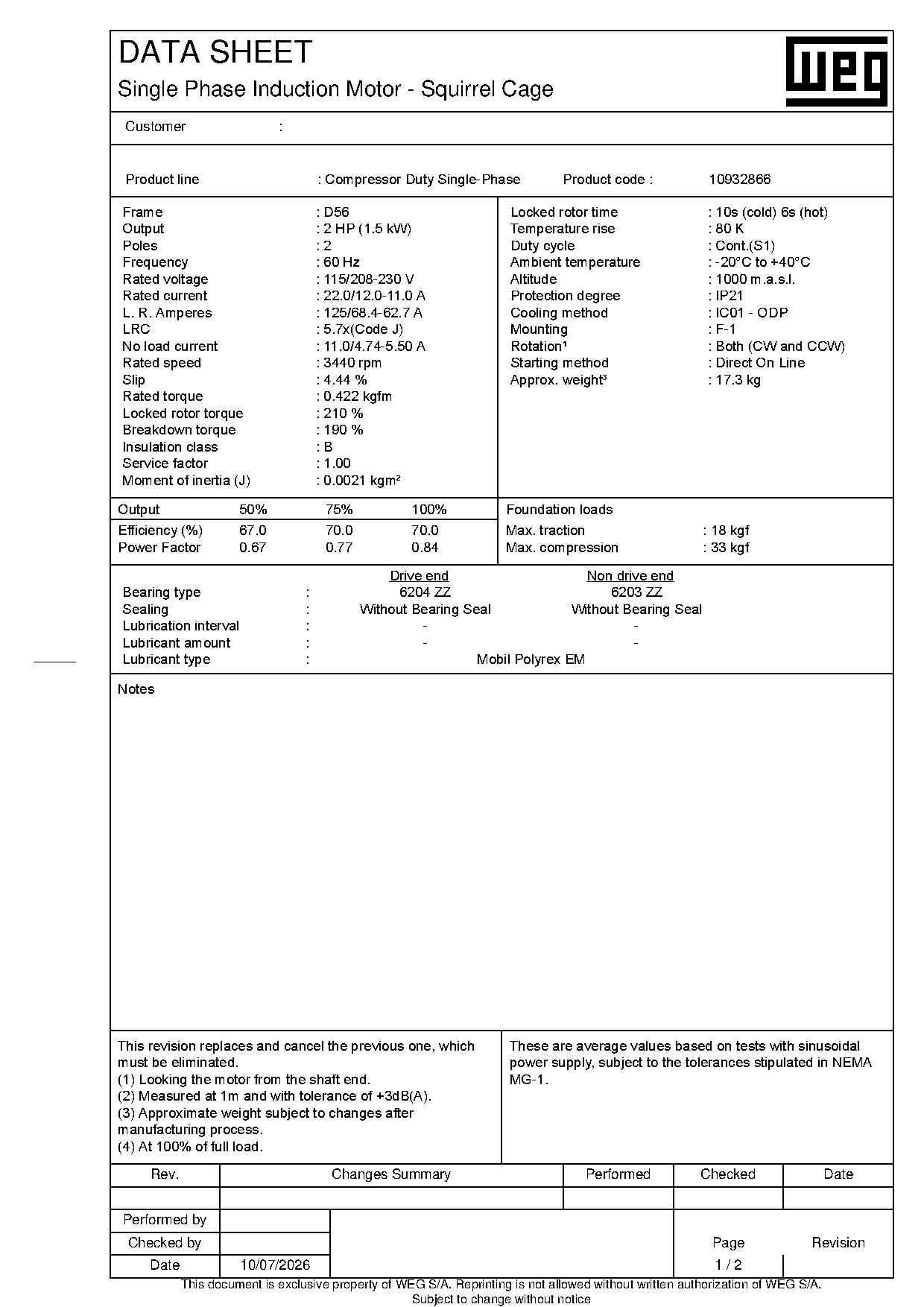

*Product may be available, please contact us for more details. 1-877-PAMENSKY (7263675)
HP
2 HP
RPM
3600 rpm
Voltage
115/208-230 V
Enclosure
IC01 - ODP
Frame
D56
Voltage
115/208-230 V
Number of Poles
2
Altitude
1000 m.a.s.l.
Starting Method
Direct On Line
Temperature Rise
80 K
Insulation Class
B
Locked Rotor Time
10s (cold) 6s (hot)
Rated Torque
3.05 ft.lb
LRC
5.7x(Code J)
Rated Current
22.0/12.0-11.0 A
Rated Speed
3440 rpm
Degree of Protection
IP21
Standard
00006
Shaft Material
SAE 1040/45 Carbon Steel
Grounding Lugs
Single
Fan Material
Plastic
Balancing Method
1/2 Key
Overload Protector (Phenolic)
Manual
Grease Type
Mobil Polyrex EM
Rotation
Both (CW and CCW)
Sealing
Without Bearing Seal
Flange
Without
Output
2 HP (1.5 kW)
Terminal Box
Without Terminal Box
Ambient Temperature
-20°C to +40°C
Duty Cycle
Cont.(S1)
Service Factor
1.00 (1.00 @ 208V)
Moment of Inertia (J)
0.0498 sq.ft.lb
Breakdown Torque
190 %
No Load Current
11.0/4.74-5.50 A
L. R. Amperes
125/68.4-62.7 A
Slip
4.44 %
Mounting
F-1
Frequency
60 Hz
Frame Material
Rolled Steel
Painting
Munsell N 1 - Matte 207N (ISO 12944 - C2)
Tropicalized Painting
Without
Bearing Cap
No-Without Bearing Cap
Drip Cover
Without
NDE Bearing
6203 ZZ
Locked Rotor Torque
210 %
Bearing Type
6204 ZZ
NDE Bearing Seal
Without Bearing Seal
